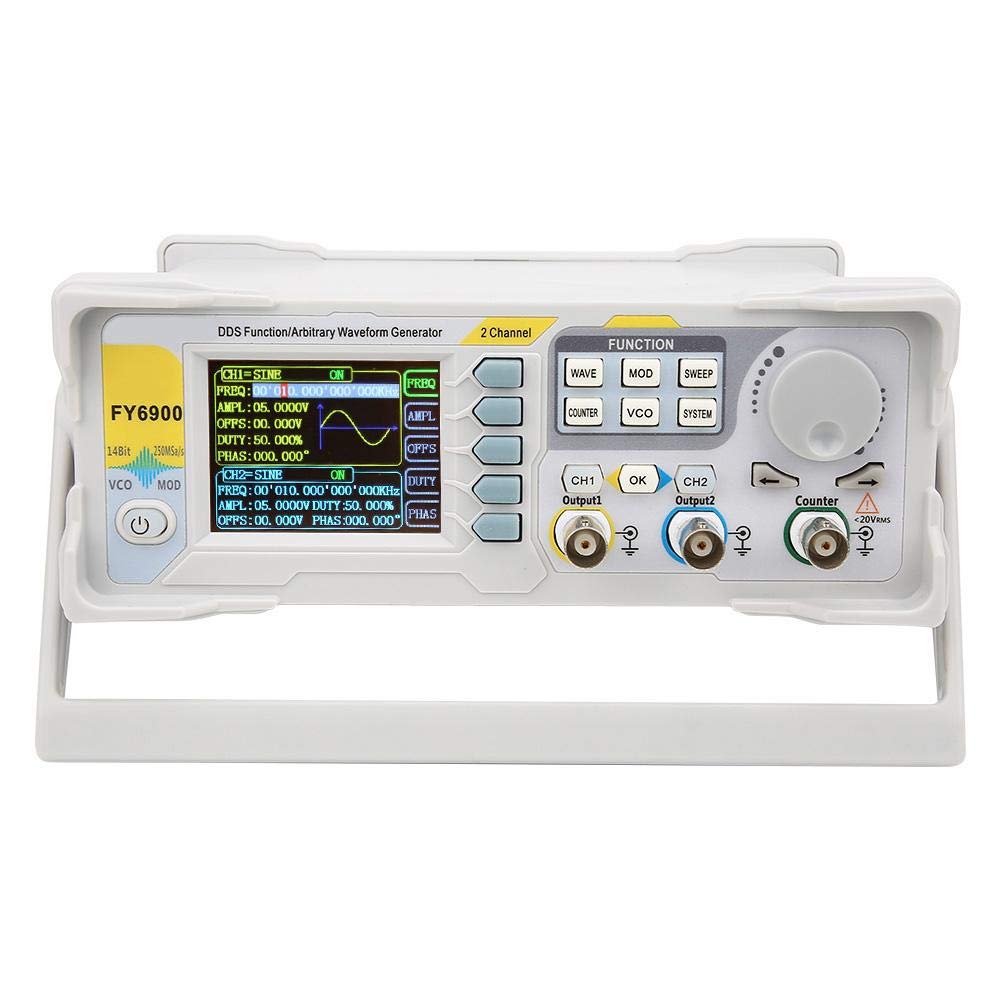

DescriptionThe FY6900 series dual channel function/arbitrary waveform generator is a high performance, cost effective combination of function signal generator, arbitrary waveform generator, pulse signal generator, VCO, frequency sweeper, counter and frequency meter. A versatile signal generator. The rich shortcuts greatly simplify the complicated operation process and greatly enhance the operability of the instrument. Users do not have to spend a lot of time learning and familiar with the operation of the instrument, you can use it. It is especially suitable for use in electronic enthusiasts, research institutes, high-tech enterprises, and vehicle maintenance Package includes: 1×FY6900 Function Generator 1xBNC Test Cable 1xUSB Communication cable 1xPower Cable 1xQ9 Clip Cable Specifications ★Model：FY6900-60M ★Sine：0~60MHz ★Square：0~25MHz ★Ramp, Triangle, Pulse, TTL/CMOS, Arbitrary Waveform：0~10MHz ★Waveforms：Sine, Square, Rectangle (Duty Cycle adjustable), Pulse (Pulse width and cycle time can be set accurately), Triangle/Ramp, Sawtooth Wave, CMOS, Four channels TTL, DC, Half wave, Full wave, Positive Step, Inverse Step, Positive Exponent, Inverse Exponent, Lorenz Pulse, Multitone, Noise, ECG, Trapezoidal Pulse, Sinc Pulse, Narrow Pulse, Gauss White Noise, AM, FM, and other 64 sets customer-defined waveform. ★Non-Volatile Storage：Can store 64 user-defined arbitrary waveforms, (8K 14bits) * 64 ★Sampling Rate：250MSa/s ★Sine Harmonic Suppression：≥50dBc(<1MHz); ≥45dBc(1MHz~20MHz) ★Amplitude（VPP）：Frequency≤5MHz: 1mVpp~24Vpp; 5MHz~10MHz: 1mVpp~20Vpp; Frequency>20MHz: 1mVpp~5Vpp; ★Input Voltage Range：1Vpp~20Vpp ★Range：0.01Hz~100MHz ★Sweep Type：Linear or Logarithm ★Sweep Objects：Frequency, Amplitude, Offset, Duty Cycle ★VCO control object：voltage controlling frequency (VCF), voltage controlling amplitude (VCA), voltage controlling offset, voltage controlling duty cycle. ★VCO special function：Can Amplitude Modulate (AM) or Frequency Modulate (FM) by external analog signal. ★Modulation Type：AM, FM, PM, ASK, FSK, PSK ★Display Type：2.4 inch, TFT Color Display. ★Save & Load Amount：20 ★Interface Type：USB to Serial interface ★Communicating Speed：9600bps (Industrial standard) ★Power Voltage Range：AC100V~240V ★Item Size：Approx. 210mm * 195mm * 75mm / 8.27 * 7.68 * 2.96 (L * W * H) ★Item Weight：Approx. 611g / 21.56oz ★Package Weight：Approx. 1065g / 37.51oz(Main engine, accessories and packing materials) FeaturesFrequencyModelFY6900-20M    FY6900-30MFY6900-50MFY6900-60MSine0~20MHz0~30MHz0~50MHz0~60MHzSquare0~15MHz0~25MHz0~25MHz0~25MHzRamp, Triangle0~10MHz0~10MHz0~10MHz0~10MHzPulse0~10MHz0~10MHz0~10MHz0~10MHzTTL/CMOS0~10MHz0~10MHz0~10MHz0~10MHzArbitrary Waveform0~10MHz0~10MHz0~10MHz0~10MHzMin pulse width20ns(All models of pulse wave min width can be 20ns)Min. Resolution on all frequency range1μHz (Min. resolution can low to 1μHz on all frequency range to ensure adjusting accuracy under high frequency. For example, it can output 10.000000000001MHz signal).Accuracy±20ppmStability±1ppm/ 3hoursWaveform CharacteristicsWaveformsSine, Square, Rectangle (Duty Cycle adjustable), Pulse (Pulse width and cycle time can be set accurately), Triangle/Ramp, Sawtooth Wave, CMOS, Four channels TTL, DC, Half wave, Full wave, Positive Step, Inverse Step, Positive Exponent, Inverse Exponent, Lorenz Pulse, Multitone, Noise, ECG, Trapezoidal Pulse, Sinc Pulse, Narrow Pulse, Gauss White Noise, AM, FM, and other 64 sets customer-defined waveform.Non-Volatile StorageCan store 64 user-defined arbitrary waveforms, (8K 14bits) * 64Waveform Length8192 points * 14bitsSampling Rate250MSa/sVertical Resolution14 bitsSineHarmonic Suppression≥50dBc(<1MHz); ≥45dBc(1MHz~20MHz);Total Harmonic Distortion<0.5% (20Hz~20kHz,0dBm)RectangleRise/Fall Time≤7ns (VPP<5V)Overshoot≤5%Duty Cycle0.01%~99.99% (Resolution 0.01%)Sawtooth waveLinearity>99% (0.01Hz~10kHz)Output characteristicsAmplitude(VPP)Frequency≤5MHz: 1mVpp~24Vpp; 5MHz<frequency≤10mhz: br=””> 10MHz<frequency≤20mhz: br=””> Frequency>20MHz: 1mVpp~5Vpp;</frequency≤20mhz:></frequency≤10mhz:>Resolution1mVAmplitude Stability±0.5%/ 5 HoursAmplitude flatness±2.5%(<10MHz);±5%(>10MHz);Waveform OutputImpedance50Ω±10%(Typical)ProtectionAll channels can work more than 60 seconds when the load is short-circuited.DC OffsetsOffsets RangeFrequency≤20MHz: ±12V;  Frequency>20MHz: ±2.5V;Offsets Resolution1mVPhase FeaturePhase range0~359.99°Phase resolution0.01°TTL OutputTTL Level Amplitude>3VppFan-out>8 TTL LOADRise/Fall Time≤10nsCMOS OutputLow Electric Level<0.3VHigh Electric Level1V~12VRise/Fall Time≤18nsExternal MeasurementFunctionFrequency, Period, Positive/Negative Pulse Width, Duty CycleInput Voltage Range1Vpp~20VppFrequency MeterResolution0.01Hz (Gate Time = 100S)Range0.01Hz~100MHzSensitivityGate Time 3 grades (1S, 10S, 100S) adjustableCounterRange0-4294967295CouplingDC, ACWorking ModeManualPeriodMeasurement Range5ns ~ 20sDC coupling measurementPulse WidthMeasurement Range0ns ~ 20sResolution5nsDuty CycleRange (Display)0% ~ 100%SweepCarrier WaveformSine, Square, Ramp, Arbitrary (except DC)Sweep TypeLinear or LogarithmSweep DirectionUp, Down and roundtrip sweep directions;Sweep ObjectsFrequency, Amplitude, Offsets, Duty CycleSweep Time0.01S~999.99S/StepSetting rangeStarting position and Finishing position can be set arbitrarily.Sweep RangeDecided by Parameters setting.VCO (Voltage Control Output)Modulation signal range to input0~5VVCO signal frequency range0-2000HzVCO control objectvoltage controlling frequency (VCF), voltage controlling amplitude , voltage controlling offsets, voltage controlling duty cycle.VCO special functionCan Amplitude Modulate (AM) or Frequency Modulate (FM) by external analog signal.ModulationModulation TypeAM, FM, PM, ASK, FSK, PSKCarrier WaveformSine, Square, Triangle, Ramp, Arbitrary waveform (Except DC)AMSourceInternal (CH2) / External (VCO IN Port)Modulating WaveformSine, Square, Triangle, Ramp, Arbitrary waveformDepth0% to 120%Modulating FrequencyInternal : 1μHz~1MHz;  External: 1μHz~2KHz;FMSourceInternal (CH2) / External (VCO IN Port)Modulating WaveformSine, Square, Triangle, Ramp, Arbitrary waveformModulating FrequencyInternal : 1μHz~1MHz;  External: 1μHz~2KHz;PMSourceInternal (CH2) / External (VCO IN Port)Modulating WaveformSine, Square, Triangle, Ramp, Arbitrary waveformPhase Deviation0° to 360°Modulating FrequencyInternal : 1μHz~1MHz;  External: 1μHz~2KHz;ASKSourceInternal (CH2), External (ASK IN Port), ManualModulating WaveformSquare with 50% duty cycle.Key Frequency1μHz~10MHzFSKSourceInternal (CH2), External (FSK IN Port), ManualModulating WaveformSquare with 50% duty cycle.Key Frequency1μHz~10MHzPSKSourceInternal (CH2), External (PSK IN Port), ManualModulating WaveformSquare with 50% duty cycle.Key Frequency1μHz~10MHzBurst FunctionCarrier WaveformSine, Square, Ramp, Arbitrary (except DC)Burst Count1~1048575Trigger SourceManual, Internal, External (AC/DC)G’eneral SpecificationsDisplayType2.4 inch, TFT Color Display.Save & LoadAmount20Position01 to 20 (01 for start default value)InterfaceTypeUSB to Serial interfaceProtocolC’ommand line mode, providing communication protocols.Communicating Speed9600bps (Industrial standard)PowerVoltage RangeAC100V~240VTechnicSMD, LSI, Reliable and durableBuzzerCan be turned on/off by setting.OperationButtons and knob continuously.EnvironmentTemp.: 0~40℃, Humidity:<80% Getting started with the FY6900
