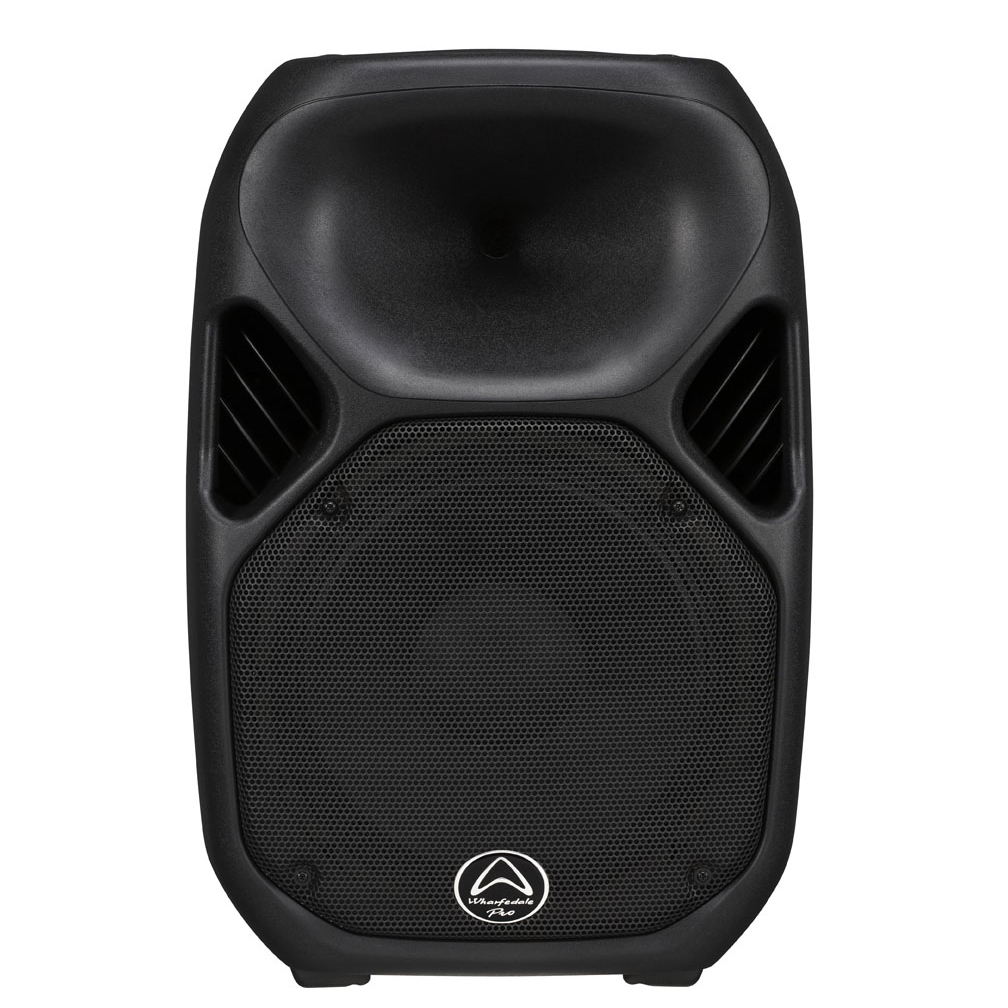

Description Specifications System Type : Passive Configuration : 12” 2-way Frequency Response ( /-3 dB) : 55 Hz-20 KHz Frequency Range (-10 dB) : 50 Hz-20 KHz Sensitivity (2.83 v / 1 m) : 98 dB Calculated Maximum SPL @1 m : 128 dB System Rated Impedance : 8 Ω Low Frequency Transducer Size : 305 mm / 12” Voice Coil Size  : 64.26 mm / 2.5” Rated Impedance : 8 Ω LF Power (re:AES2-2012) : 250 w High Frequency Transducer HF Driver Type : Compression Driver Voice Coil Size : 44 mm / 1.75” Exit Size : 25 mm / 1” Diaphragm Material : Titanium Rated Impedance : 8 Ω HF Power (re:AES2-2012) : 40 w Nominal Coverage (H x V) : Hybrid Symmetry Horn 100°x80° Power System Power AES (RMS) : 250 w System Programme Power : 500 w System Peak Power : 1000 w Crossover frequency : 2.6 KHz Input Connector : 2 x NL4 (speakON compatible) Hardware Pole Mount : 35 mm with lock screw Handles : 2 on sides Mounting points : M8 * 10 Enclosure Enclosure Material : Trapezoidal / Polypropylene Finish : Black Grille Material & Finish : 1.2 steel Dimensions – Unpacked Height : 582.7 mm /  22.9” Width Front : 384.6 mm / 15.1” Width Rear : 384.6 mm / 15.1” Depth : 318.6 mm / 12.5” Dimensions – Packed Height : 663 mm / 26.1” Width Front : 435 mm / 17.1” Width Rear : 435 mm / 17.1” Depth : 408 mm / 16.1” Weight Net Weight (kg / lbs) : 12.0 kg / 26.4 lbs Gross Weight (kg / lbs) : 15.1 kg / 33.2 lbs
