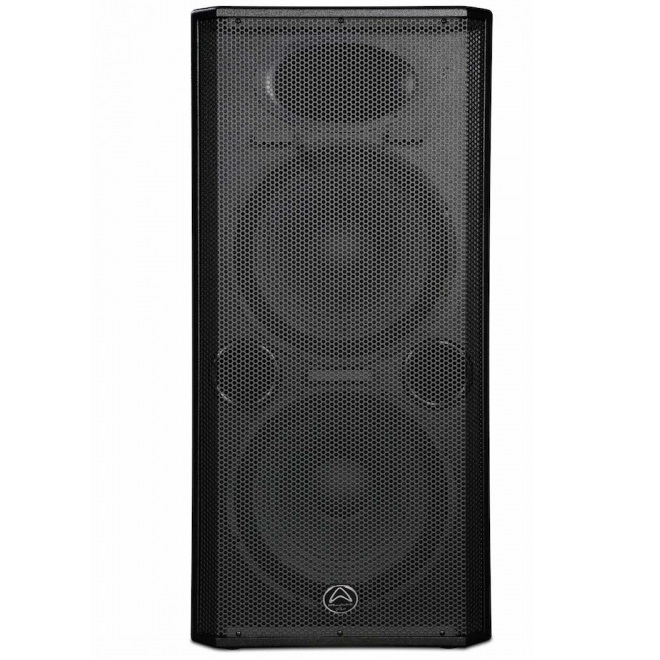

Description SPECIFICATIONS Model name : EVO-X215 System type : Passive Configuration : Quasi 3-way Frequency Response ( /-3dB) : 40Hz-20kHz Frequency Range (-10dB) : 35Hz-20kHz Sensitivity (2.83v/1m) : 100dB System rated impedance : 4Ω Calculated Maximum SPL @1m : 135dB Low Frequency Transducer Size : 381mm / 15″ Voice coil size : 64.26mm / 2.5″ Rated impedance : 8Ω LF Power (re:AES-2012) : 2 x 350w Hi Frequency Transducer HF Driver type : Compression driver Voice coil size : 44.5mm / 1.75″ Exit size : 25mm / 1″ Diaphragm Material : Titanium Rated impedance : 8Ω HF Power (re:AES-2012) : 40w Nominal coverage : 90° x 60° Power System continuous power : 700w System programme power : 1400w System peak power : 2800w Crossover Frequency : 2.3kHz Input connectors : 2 x NL4 (speakON Compatible) 2 x 1/4″ Jacks Hardware Pole mount : No Handles : 2 on sides Enclosure Enclosure material : MDF Finish : Rhino rock paint Grille material and finish : 1.2mm Steel Dimensions – unpacked Height : 1058mm / 41.65″ Width front : 502mm / 19.76″ Width rear : 330mm / 12.99″ Depth : 467mm / 18.39″ Dimensions – packed Height : 1123mm / 44.21″ Width front : 564mm / 22.2″ Width rear : 362mm / 14.25″ Depth : 496mm / 19.53″ Weight Net weight : 42.0kg / 92.4lbs Gross weight : 47.1kg / 103.61bs
