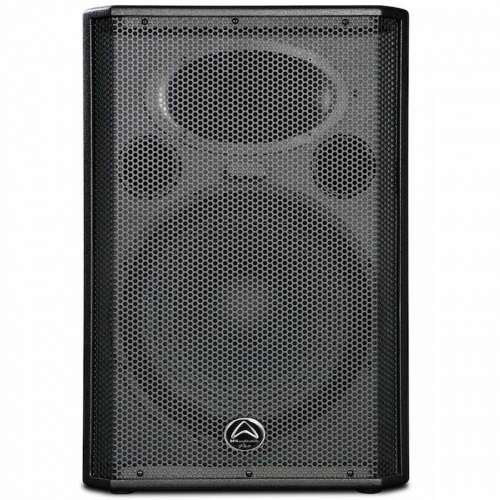

Description SPECIFICATIONS Model name : EVO-X15 System Type : Passive Configuration : 2-way Frequency Response ( /-3dB) : 45Hz-20kHz Frequency Range (-10dB) : 40Hz- 20kHz Sensitivity (2.83v/1m) : 98dB System rated impedance : 8Ω Calculated Maximum SPL @1m : 130dB Low Frequency Transducer Size : 381mm / 15″ Voice coil size : 64.26mm / 2.5″ Rated impedance : 8Ω LF Power (re:AES-2012) : 350w Hi Frequency Transducer HF Driver type : Compression driver Voice coil size : 44.5mm / 1.75″ Exit size : 25mm / 1″ Diaphragm Material : Titanium Rated impedance : 8Ω HF Power (re:AES-2012) : 40w Nominal coverage : 90° x 60° Power System continuous power : 350w System programme power : 700w System peak power : 1400w Crossover Frequency : 2.2kHz Input connectors : 2 x NL4 (speakON Compatible) 2 x 1/4″ Jacks Hardware Pole mount : Dual Angle (0⁰ or 10⁰) 35mm Pole Socket Handles : 2 on sides Enclosure Enclosure material : MDF Finish : Rhino rock paint Grille material and finish : 1.2mm steel Dimensions – unpacked Height : 675mm / 26.57″ Width front : 460mm / 18.11″ Width rear : 294.5mm / 11.59″ Depth : 450mm / 17.72″ Dimensions – packed Height : 750mm / 29.53″ Width front : 524mm / 21.02″ Width rear : 324mm / 12.76″ Depth : 486mm / 19.13″ Weight Net weight : 24.7kg / 54.3lbs Gross weight : 28.4kg / 62.3lbs
