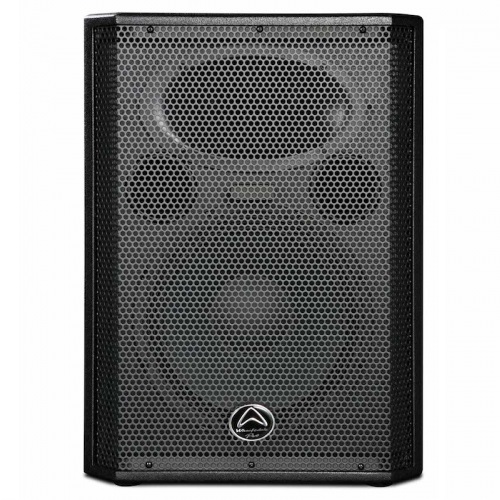

Description SPECIFICATIONS Model name : EVO-X12 System Type : Passive Configuration : 2-way Frequency Response ( /-3dB) : 55Hz-20kHz Frequency Range (-10dB) : 50Hz-20kHz Sensitivity (2.83v/1m) : 98dB System rated impedance : 8Ω Calculated Maximum SPL @1m : 129dB Low Frequency Transducer Size : 305mm / 12″ Voice coil size : 51.6mm / 2″ Rated impedance : 8Ω LF Power (re:AES-2012) : 300w Hi Frequency Transducer HF Driver type : Compression driver Voice coil size : 44.5mm / 1.75″ Exit size : 25mm / 1″ Diaphragm Material : Titanium Rated impedance : 8Ω HF Power (re:AES-2012) : 40w Nominal coverage : 90° x 60° Power System continuous power : 300w System programme power : 600w System peak power : 1200w Crossover Frequency : 2.3kHz Input connectors : 2 x NL4 (speakON Compatible) 2 x 1/4″ Jacks Hardware Pole mount : Dual Angle (0⁰ or 10⁰) 35mm Pole Socket Handles : on sides Enclosure Enclosure material : MDF Finish : Rhino rock black paint Grille material and finish : 1.2mm Steel Dimensions – unpacked Height : 590mm / 23.23″ Width front : 430mm / 16.93″ Width rear : 297.5mm / 11.71″ Depth : 370mm / 14.57″ Dimensions – packed Height : 655mm / 25.79″ Width front : 492mm / 19.37″ Width rear : 328mm /12.91″ Depth : 408mm / 16.06″ Weight Net weight : 19.2kg / 42.2lbs Gross weight : 22.4kg / 49.3lbs
